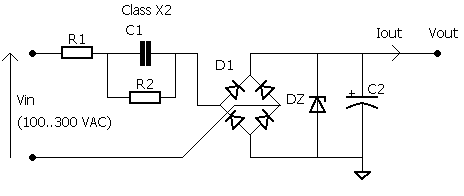

Alimentation à capa-chutrice (double redressement)

$V_{o u t} = V_{D Z}$

Courant de sortie limité à: $I_{o u t} = \frac{\sqrt{2} V_{i n (r m s)} - V_{D Z}}{\sqrt{2} (R_{1} + \frac{1}{2 π . f . C_{1}})}$
